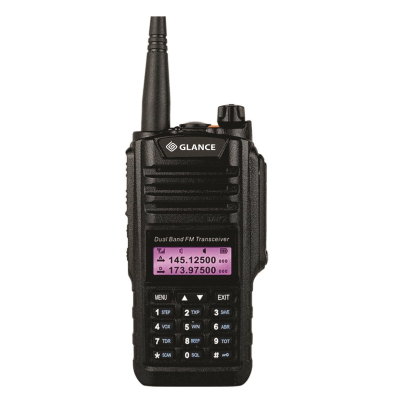

Bộ đàm cầm tay GLANCE GC-1600 dùng 2 dải tần số
- Dải tần VHF từ 136-174mhz
- Dải tần UHF từ 420-450mhz
- Số kênh : 128 kênh
- Công suất : 5W
- Pin 7.4V/3600mAh
Main Features
- DTMF encoded
- Bult-in key lock
- Tone end of transmission
- VOX function
- Noise Reduction Circuit
- Long Communication Range
- Battery Save.CTCSS/DCS
- FM Radio
- Dual Watch/dual reception
- Bult-in LED flashlight
General
-
Frequency Range: 144MHz-148MHz(Rx/Tx),200MHz-260MHz(Rx/Tx), 420MHz-450MHz(Rx/Tx)
- Memory channels Up to 128 channels
- Frequency stability 2.5ppm
- Antenna impedance 50Ω
- Operating temperature -20℃to60℃
- Supply voltage Rechargeable Lithium-lon mAh 7.4V/3600
- Consumption in receptiom 380mA
- Consumption in transmission ≤1.4A
- Mode of operation Simplex or semi-duplex
- Duty cyde 03/03/54 min.(Rx/Tx/Standby)
- Dimensions 65mm*41.5mm*133.8mm
- Weight 279g (approximate)
Transmitter
- RF power 5W/1W
- Type of modulation FM
- Emission class 16K￠F3E/11K￠F3E(W/N)
- Maximum deviation ≤±5kHz/≤±2.5kHz(W/N)
- Spurious emissions ＜-60dB
Receiver
- Receiver sensitivity 0.2 μV(at 12 dB SINAD)
- Intermodulation 60dB
- Audio output 1W
- Spurious Radiation ≥65dB
Standard Package Content
- Walkie talkie
- Li-Ion battery
- Antenna
- Belt Clip
- User's Manual
- Charger
