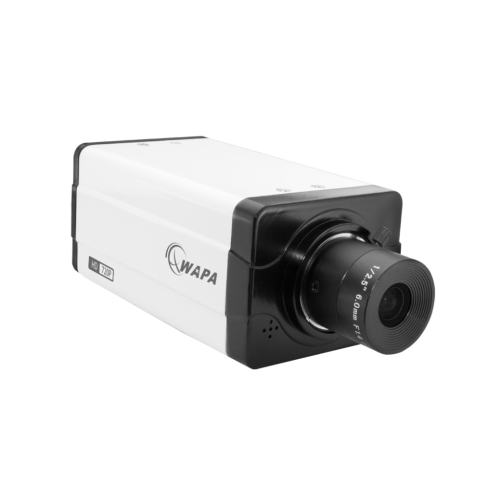

Camera IP WAPA BL-C3QA720
Model No. BL-C3QA720PL | BL-L-CS3720B
Image sensor 1/4 inch CMOS sensor, 1M Pixel
Exposure mode Automatic exposure, white balance of, and gain control.
PAL video resolution: 1280 × 720/640 × 352/432 × 240
Lens CS interface
Manual focus
Min. Illumination 0.1Lux / F1.6 (Color)
Video compression MPEG-4 / H.264
video compression bit rate 500Kbps ~ 4Mbps
50Hz video frame rate: 25fps (1280 × 720/640 × 352/432 × 240)
TCP / UDP / IP / HTTP / FTP / SMTP / DHCP / DNS / ARP / ICMP / POP3 / NTP
RJ45 communication interface, 100M adaptive interface SEthernet Auto
Back-end PC / NVR equipment
power input DC 12V 1A / POE DC 12V 1A
Power consumption Max. 6W
Working temperature -20 ~ + 70 ℃
Working humidity 10 ~ 85%
weight 0.26kg
Measurement (WxHxL) 61.7 × 49.8 × 116.8mm
