| Model No: HW0024 |
| Features | System Security | Supports there-level account, password, user authority management |
| P2P (Free) | No need to preset camera. Offer free P2P(JWEV-000xxx-xxxxx), Plug&play,.Support QR code scanning to view . |
| Multi-device function | View 9 cameras at the same time by IE browser. |
| PC client | Install program to computer,view 16 cameras in LAN or from internet,recording,snapshot,2-way autio available,Multi-language. |
| Cell Phone View | Support Iphone and andriod smart Phone view via QR code scanning. |
| TF Card Record | Support 32G TF card . Support the record view via browser or read the record documents in the TF Card directly. |
| Video | Image Compression | H.264 |
| Image Frame Rate | 25fps |
| Resolution | (1280*720)/25fps，VGA(640*480),QVGA(320*240) |
| Flip Mirror Images | Vertical / Horizontal |
| Video Parameters | Brightness, Contrast |
| Lens | Lens Type | Glass Lens Standard : 3.6 mm |
| Night Vision | Night Visibility | 10Φ5 IR LEDs, Night visibility up to 10 meters |
| Audio | Input / Output | Built-in Microphone and Speaker. Two way audio. |
| Audio Interface | Audio IN / Audio Out |
| Pan/Tilt | Rotation Angle | Pan:355°, Tilt: 90° |
| Rotation Speed | 10 Level PT Speed Optional, Speed Range 5-50°/ Second |
| Preset | Support 16 Preset Positions |
| Network | Ethernet | One 10/100Mbps RJ-45 |
| Supported Protocol | HTTP,FTP,TCP/IP,UDP,SMTP,DHCP,PPPoE,DDNS,UPnP etc. |
| IP Mode | Dynamic IP address, static IP address |
| Online Visitor | Support 4 visitors at the same time |
| Wireless | Wireless Standard | IEEE 802.11b/g/n |
| Wireless Security | WEP, WPA, WPA2 Encryption |
| Others | Product Type | Plastic/ Indoor Use |
| Colour | Black or Silver |
| Power | DC5V 2A |
| Working Temperature | -10~50 °C |
| Working Humidity | 95% RH |
| Size | Item size: 112mmx102.6mm (HXW) |
| Packaging size:182mmx110mmx149mm(LxWxH) |
| Weight | N.W.:280g G.W.: 600g (Note:Actual Weight Final) |

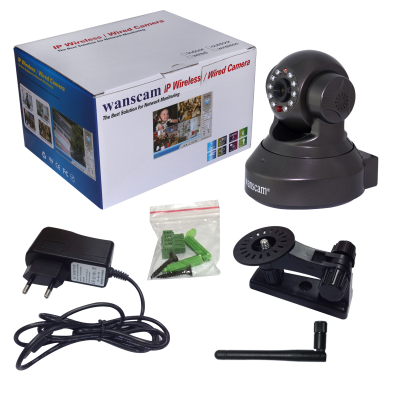

| Accessories | Adaptor, CD(including manual), Bracket,Screw |
| Alarm | Alarm Detection | Motion detection ,Motion Detect Sensibility can be adjusted |
| Alarm Action | Support Email photo, FTP photo etc. |
| System | Supported OS | Microsoft Win98 SE/ME/2000/XP/Vista/Windows7 32Bit |
| Browser | IE6.0, IE7.0, IE9.0, FireFox, Google or other standard browser |
| Certification | CE,FCC,RoHS |
| Warranty | Limited 2-Year Warranty |
