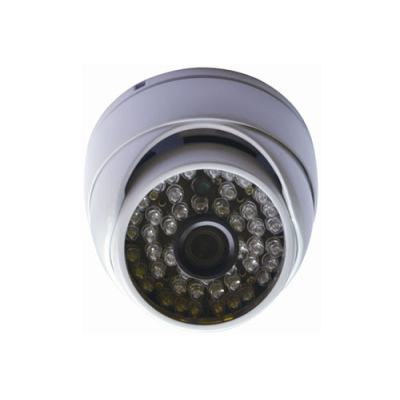

| Product | 1 megapixel IR waterproof Dome IP Camera |
| Camera |
| Image Sensor | 1/4"CMOS sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1280×720 |
| Min. Illumination | Color:0.01Lux @(F1.2,AGC ON),0 LUX with IR B / W:0.008Lux @(F1.2,AGC ON), 0 LUX with IR |
| Electronic Shullter | 1/50(1/60)s - 1/100,000 s |
| LED | 24pcs |
| Lens | 6mm @ F1.2 (3.6mm/8mm optional) |
| Lens Mount | M12 |
| Day/Night | Auto（Support IR-CUT） |
| Synchronization way | internal synchronization |
| S/N Ratio | >48dB |
| Compression |
| Video Compression | H.264 High Profile, JPEG capture |
| Video Bite Rate | 100 Kbps~4Mbps |
| Image |
| Max Image Resolution | 1280*720 |
| Frame Rate | 50Hz:25fps (1280*720) 60Hz:30fps (1280*720) |
| Image Setting | Saturation,Brightness,Contrast adjustable through Client software or web server |
| Network Function |
| Storage | NSA(Iscsi optional) |
| Intelligent Alarm | Motion detect, Video loss, Network disconnection, IP address conflict, Storage full, Storage error |
| Protocols | TCP/IP,HTTP,DHCP,DNS,DDNS, PPPoE,SMTP,NTP (HTTPS, RTP/RTSP, SIP ,802.1x,IPv6 Optional) |
| Basic | Anti-flicker,Dual stream,Heartbeat,Password protection |
| Interface |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet interface |
| Interface protocol | ONVIF,PSIA,CGI |
| General |
| Operating Condition | -10℃~60℃,Humidity 90% or less(non-condensing) |
| Ingress Protection | IP65 |
| Power Supply | DC12V±10% |
| Power Comsuption | “IR2”:5W MAX; |
| IR distance | 15-25m |
| Dimension(mm) | Φ93mm*68mm |
| Weight(g) | 306g |
