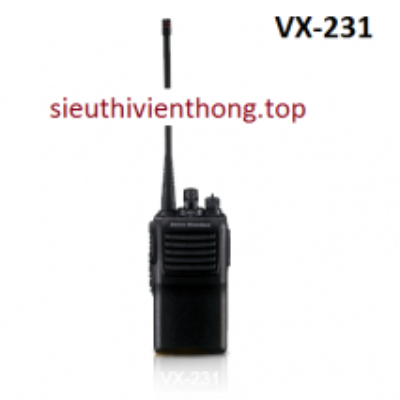

Bộ đàm Vertexstandard VX-231
| General Specification | VHF | UHF |
| Frequency Range | 134 - 174 MHz | 400 - 470 MHz; 450 - 520 MHz |
| Number of Channels | 16 |
| Power Supply Voltage | 7.4 V DC ±20% |
| Channel Spacing | 12.5 / 20 / 25 kHz |
| PLL Steps | 2.5 / 5 / 6.25 kHz | 5 / 6.25 kHz |
| Battery Life (5-5-90 duty)
1200 mAh FNB-V106
1380 mAh FNB-V131Li-UNI / FNB-V103LiA
2300 mAh FNB-V132Li-UNI / FNB-V104LiA |
9.0 hours (7.3 hours w/o saver)
10.8 hours (8.7 hours w/o saver)
19.0 hours (15.5 hrs w/o saver) |
| IP Rating | IP 54 |
| Operating Temperature Range | -22ºF to +140ºF (-30ºC to +60ºC) |
| Frequency Stability | ± 2.5 ppm |
| RF Input-Output Impedance | 50 Ohms |
| Dimension (H x W x D) | 110 x 58 x 36 mm (2300 mAh battery options)
110 x 58 x 30 mm (1380 mAh battery options) |
| Weight (Approx.) with Antenna. Belt Clip | 329 g (FNB-V132LIA)
285 g (FNB-V104LIA)
288 g (FNB-V113LI-UNI)
287 g (FNB-V103LIA) |
| Receiver Specification* | VHF | UHF |
| Sensitivity 12 dB SINAD | 0.25μV typical |
| Adjacent Channel Selectivity | 65 / 60 dB 25 kHz / 12.5 kHz |
| Intermodulation | 65 / 60 dB 25 kHz / 12.5 kHz |
| Spurious and Image Rejection | 65 dB |
| Audio Output | 500 mW @ 4 Ohms 5% THD |
*Measured by TIA/EIA-603
| Transmitter Specification* | VHF | UHF |
| Output Power | 5 / 1 W |
| Modulation | 16K0F3E, 11K0F3E |
| Conducted Spurious Emissions | 65 dB below carrier |
| FM Hum & Noise | 45 / 40 dB 25 kHz / 12.5 kHz |
| Audio Distortion | < 3 % @1 kHz |
*Measured by TIA/EIA-603
